Quick Details
River Pebbles Concrete Jaw Crusher is widely used in various industries, such as mining, road and railway construction, building construction, water conservation, and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore, etc.
Working Principle of River Pebbles Concrete Jaw Crusher
The uncrushed materials enter into the crushing chamber from the upper feed opening and are then discharged from the lower discharge opening after striking and crushing. An electric motor drives the eccentric shaft to make the swing jaw up and down under the effect of the toggle plate and spring.
Parameters of River Pebbles Concrete Jaw Crusher
| Specification | Max. Feed Size(mm) | Discharge Opening Size(mm) | Capacity (m3/h) | Main Shaft Rotating Speed(r/min) | Power (kw) |
| PE400×600 | 340 | 40-100 | 16-40 | 300 | 30 |
| PE400×750 | 340 | 20-80 | 20-50 | 300 | 45 |
| PE300×1300 | 250 | 20-90 | 15-70 | 300 | 75 |
| PE500×750 | 425 | 50-100 | 40-68 | 275 | 55 |
| PE600×900 | 500 | 75-150 | 60-120 | 255 | 90 |
| PE750×1060 | 630 | 80-200 | 110-150 | 250 | 110 |
| PE900×1200 | 720 | 100-250 | 140-280 | 250 | 132 |
Features
-
PE Hydraulic jaw crusher can be accordingly set with a rated load to do selective crushing for materials containing different compressive strengths.
-
PE Hydraulic jaw crushers have quite reliable functions of impact protection and automatic discharging, which effectively resolve the blocking problems for continuous production.
Application
Application Field: River Pebbles Concrete Jaw Crusher is mainly used in hundreds of steel slag processing plants such as Baosteel, Shougang Group, Masteel, etc., and exported to many counties such as Pakistan, Malaysia, and so on.
|
|

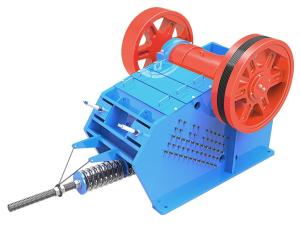

River Pebbles Concrete Jaw Crusher For Sale Mining Railway Construction Images
|
